How Do Automatic Doors Know When to Open and Close?
Introduction
Have you ever walked toward an automatic door and wondered how it knows you are coming?
You don’t press a button. You don’t touch the handle. As you approach, the door opens, waits for you to pass, and then closes behind you.
So, how does it actually happen?
The answer is sensors, a control system, and a motor working together. Each part has a different job, and the whole process happens in just a few seconds.
What Makes an Automatic Door Open?
An automatic door does not simply “see” a person like a camera does. Instead, it uses sensors to detect movement or the presence of someone near the entrance.
When you approach the door, the sensor detects you and sends a signal to the control unit.
The basic process looks like this:
Person approaches → Sensor detects movement → Controller receives signal → Motor starts → Door opens
Once the door has opened, the system continues checking the area to determine what should happen next.
How Do Door Sensors Detect People?
Different automatic doors can use different types of sensors. The most common ones are designed to detect movement or presence.
1. Motion Sensors
Motion sensors detect movement within a specific area around the entrance.
For example, when you walk toward an automatic sliding door, your movement enters the sensor’s detection zone. The sensor sends a signal to the control system, which tells the door to open.
These sensors are particularly useful at entrances where people are continuously walking in and out.
2. Presence Sensors
Presence sensors are designed to detect whether someone is still in a particular area.
This is important because a person may stop moving near the doorway. A motion-only system could potentially miss someone who is standing still, while a presence sensor can continue monitoring the area.
3. Safety Sensors
Safety sensors have a different purpose.
They help prevent the door from closing when a person or object is still in the doorway.
For example, imagine you are walking through the entrance and the door begins to close. If the system detects that you are still within the protected area, it can stop or reverse the closing movement depending on how the system is designed.
What Happens After the Sensor Detects You?
Once the sensor detects someone approaching, the information goes to the door controller.
Think of the controller as the brain of the automatic door.
It receives information from the sensors and decides what action should happen.
The controller can determine things such as:
- When the door should start opening
- How the door should operate
- When the door should remain open
- When it is safe to close
- Whether the door needs to stop or reopen
The controller then sends instructions to the motor.
How Does the Motor Open the Door?
The motor is responsible for physically moving the door.
The movement depends on the type of automatic door.
For example:
Door Type | Typical Movement |
Automatic Sliding Door | Slides sideways along a track |
Automatic Swing Door | Swings inward or outward |
Automatic Telescopic Door | Multiple panels slide together |
Automatic Revolving Door | Panels rotate around a central point |
Although the movement is different, the basic idea remains the same: the sensors detect, the controller decides, and the motor moves.
But How Does the Door Know When to Close?
This is where things get interesting.
The door doesn’t simply open and close after a fixed number of seconds.
Instead, the system continues monitoring the area.

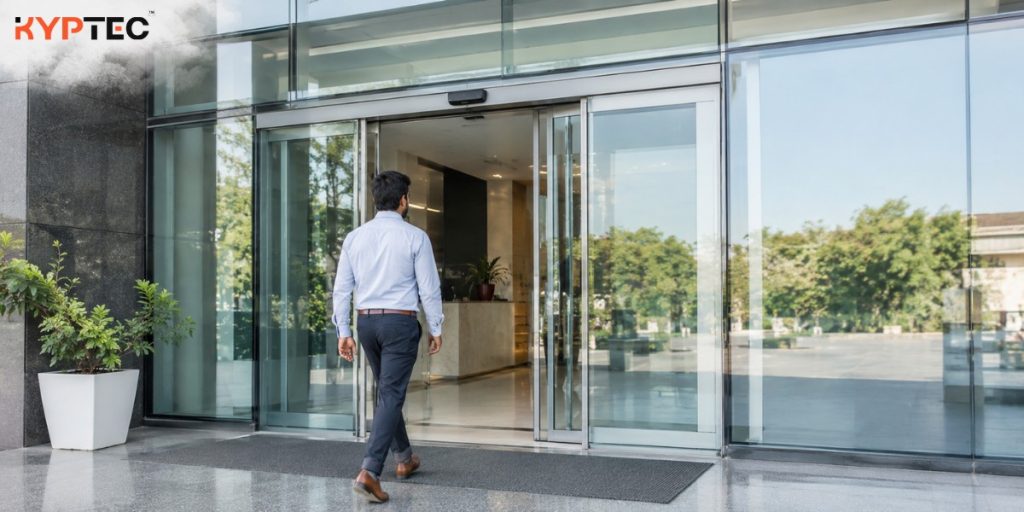

Imagine you enter a building through an automatic sliding door. The door opens as you approach. While you are walking through, the sensors continue checking the entrance.
If another person approaches immediately after you, the system can detect that activity and keep the door open or trigger another opening cycle.
Once the detection area is clear, the controller can start the closing process after the configured delay.
In simple terms:
Person approaches → Door opens → Person passes through → Sensor checks area → Area becomes clear → Door closes
This is why an automatic door can feel like it is “waiting” for you to finish passing through.
What If Someone Stops in the Doorway?
This is one of the most important reasons automatic doors use safety detection.
Consider a simple example.
You walk through a shopping centre entrance and stop for a moment to check your phone. The door should not simply continue closing because a timer has expired.
Safety detection can monitor the doorway and help prevent the door from closing when someone is still within the protected area.
This is especially important in places with frequent pedestrian movement.
Safety detection can help:
- Prevent unwanted contact with people
- Detect objects in the doorway
- Stop or reverse door movement when required
- Keep the entrance safer during busy periods
The exact behaviour depends on the door system and its configuration.
Why Does an Automatic Door Sometimes Open When Nobody Enters?
You may have experienced this before.
You are standing several feet away from a building, and suddenly the automatic door opens.
Why?
The sensor has a defined detection area. If movement occurs inside that area, the system may interpret it as someone approaching the entrance.
This can happen because of:
- A person walking close to the entrance
- Movement from the side of the doorway
- Incorrect sensor positioning
- Sensor settings that need adjustment
- Objects moving within the detection zone
Proper sensor placement and calibration can help reduce unnecessary door activation.
Does the Door Always Use the Same Sensor?
No.
The sensor setup can vary depending on the entrance and its requirements.
A busy hospital entrance may need different detection and safety arrangements compared with a small office entrance.
Factors that can influence the sensor setup include:
Foot traffic:
How many people use the entrance?
Entrance size:
How large is the detection area?
Door type:
Is it sliding, swing, telescopic, or another configuration?
Safety requirements:
Does the entrance need additional presence or safety detection?
Environment:
Are there nearby walkways, vehicles, or other sources of movement?
The right combination helps the door respond appropriately to people using the entrance.
What Happens During a Power Cut?
Another common question is what happens when an automatic door loses power.
The answer depends on the design and configuration of the particular system.
Some automatic entrance systems can include backup power or emergency operating arrangements. Others may allow manual operation when power is unavailable.
For commercial buildings, hospitals, offices, factories, and other facilities, it is important to understand how the selected door system is designed to behave during a power interruption.
Why Is Sensor Placement So Important?
A sensor can only detect what is within its designed detection area.
If the sensor is poorly positioned, the door may not respond exactly as expected.
For example:
Detection area too small:
A person may need to get very close before the door opens.
Detection area too large:
The door may activate because of movement that is not actually related to someone entering.
Incorrect positioning:
The sensor may not properly cover the main approach area.
This is why installation and calibration are important parts of an automatic door system.
Why Are Automatic Door Sensors Important?
Sensors are not only about convenience. They are an important part of how an automatic entrance operates safely and efficiently.
A properly configured sensor system can help:
- Make entrances easier to use
- Reduce the need for physical contact
- Support smoother movement in busy areas
- Detect people approaching the entrance
- Help prevent doors from closing when someone is in the doorway
- Improve the overall operation of the automatic door
This makes sensor technology an important part of modern entrance automation.
Automatic Doors Are More Than Just a Motor
It is easy to think that an automatic door is simply a motor that opens and closes a door.
In reality, several components work together.
Sensors detect movement or presence.
The controller processes the information and decides what should happen.
The motor creates the movement needed to open or close the door.
Safety systems help monitor the entrance and reduce the risk of unwanted closing.
When these components work together correctly, the result is an entrance that responds automatically to people moving through it.
Final Thoughts
So, how do automatic doors know when to open and close?
They rely on sensors to detect movement or presence around the entrance. The controller receives this information and determines when the door should open, remain open, or close. The motor then carries out the required movement, while safety sensors help monitor people and objects around the doorway.
At KYPTEC, understanding how these different components work together is an important part of developing practical entrance automation solutions. The next time an automatic door opens as you walk toward it, remember that there is a complete detection and control process happening behind that simple movement.
Frequently Asked Questions
1. How does an automatic door detect a person?
Automatic doors can use motion or presence sensors to detect people within a defined area near the entrance.
2. How does an automatic door know when to close?
The system monitors the detection area and can begin closing when the area is clear, according to its configured settings.
3. Can an automatic door detect someone standing still?
Some systems use presence detection that can continue monitoring a person even when they are not moving.
4. Why does an automatic door open when nobody walks directly toward it?
Movement within the sensor’s detection zone can sometimes activate the door, depending on sensor placement and configuration.
5. Are automatic door sensors important for safety?
Yes. Safety detection can help prevent the door from closing when a person or object is still within the protected area.
